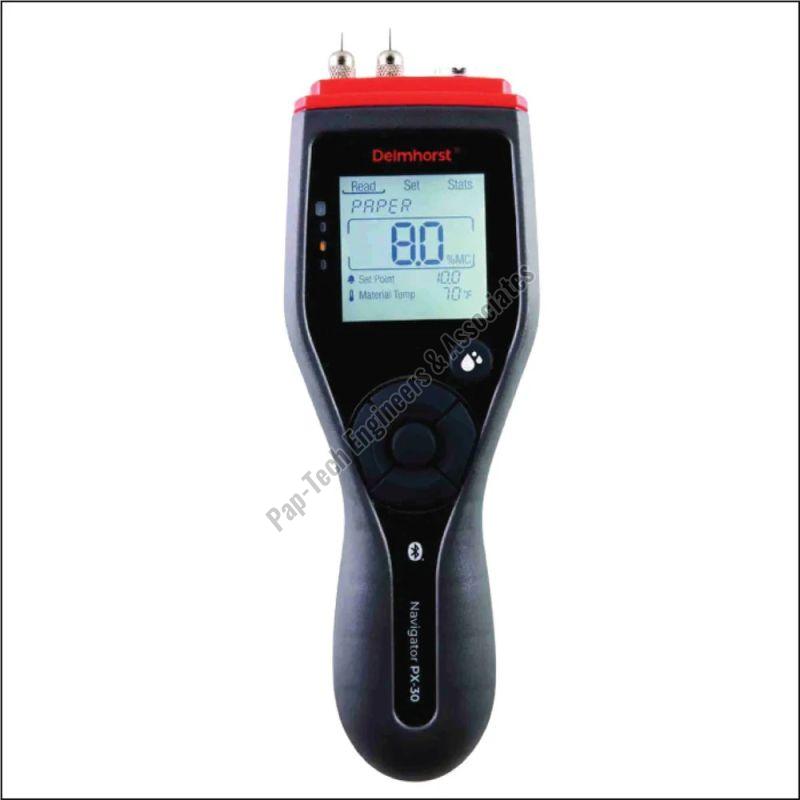

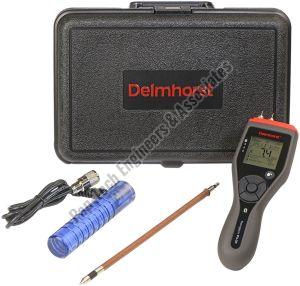

PX-30 MOISTURE METER

The PX-30 is the latest in the new Navigator™ family of moisture meters from Delmhorst. Uniquely designed for use in the field, the PX-30 features a dashboard-like display that is easy to read under most conditions and large, easy-to-use navigation buttons.

With the PX-30 Digital Paper Meter, the contact pins mounted on the top of the meter are used for making direct contact with the material. Various external electrodes are also available for specific applications. The PX-30 is especially useful for testing paperboard, corrugated stock, and paper cores and tubes. It is ideal for QC personnel, buyers, and salespeople.

The PX-30 includes Bluetooth® connectivity, enabling connection to the Delmhorst EDGE™ app with customizable settings and the ability to share data from anywhere.

• Large, custom display with auto backlight – Easy to read under all conditions.
• Modern case design with large, tactile buttons and an E-Z grip handle.
• On-screen statistics for up to 100 readings saved to the meter: High, Low, Average, and Standard Deviation.
• Moisture Range:
  • 4.3% – 18% MC for paper (kraft paper calibration).
  • 5% – 40% for baled scrap paper.
• 0–100 reference scale for obtaining relative moisture levels on other materials without calibration.
• Temperature correction (°F/°C – PX-30 baled and scrap only).
• Bluetooth® connectivity (PX-30).
• Color-coded LEDs – Adjustable through the EDGE™ app (PX-30).
• Alarm setpoint – Alerts to user-selected MC level.
• Internal calibration check.
• Low Battery warning with audio.
• Auto-off timer – Set to 1 min, 4 min, or 10 min.
• Compatible with existing Delmhorst prods and electrodes.
• Electrodes and prods are interchangeable; others are available to accommodate most applications.

• Power: 2 x AAA alkaline batteries.
• Operating Temperature: 0 – 255°F (-18 – 124°C).
• Size (meter only): 8.65 in x 2.85 in x 1.60 in (21.97 cm x 7.24 cm x 4.06 cm).
• Weight (meter only): 8.6 oz (244 g).

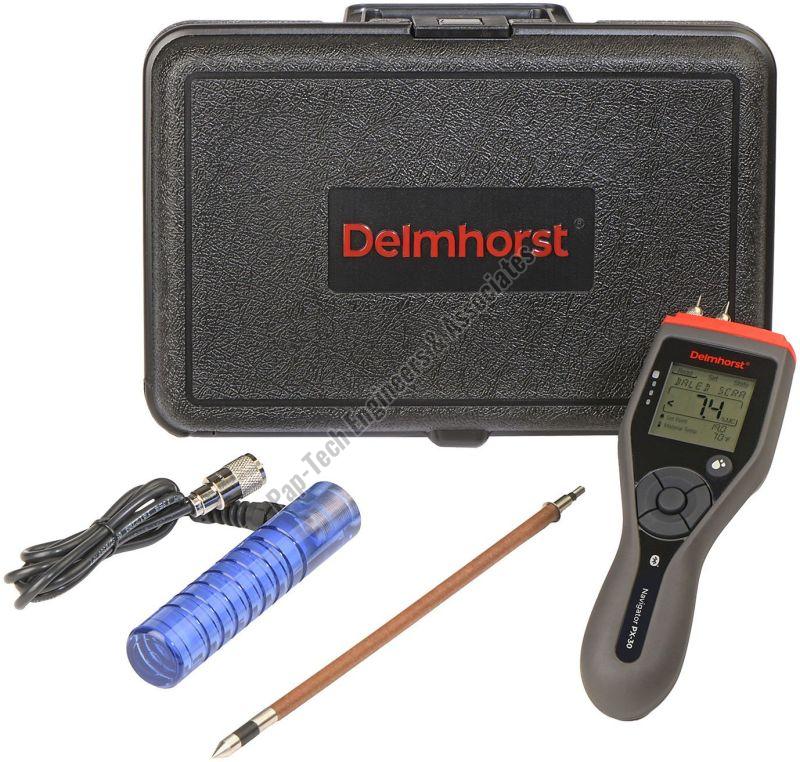

• Carrying Case: Hard plastic case included.
• Warranty: 1-year warranty on manufacturer’s defects.

• Data export to .csv format.
• Save unlimited readings.
• Customized LED ranges.
• Timestamp and geotag.
