Physical Testing Equipments

Description:

Analog Thickness Gauge is a precision instrument for measuring the Thickness of paper, Plastic films, Laminates, Foil or Board. A dial type micrometer is mounted on the base with a dead weight on top so develop a uniform, reproducible constant pressure.The total system is closed in an air tight,transparent enclosure protecting dirt & dust.

Description:

It is a manually operated circular (round) cutter with four knives along the perimeter. It is used for cutting circular sample of paper, board and similar materials. One test specimen at a time by turning wheel at 90° rotation (one quarter fitted with for sharp medical grade blade.

Salient Features :

Several layers of paper profile can be punched out in one operation simultaneously.

Save considerable amount of time in sample preparation.

Speedy and accurate cutting.

Cutting without any deformation and damage.

It has a high capacity.

Punch is exchangeable and can be easily resharpened.

Technical–Specification :

Punch made of special steel.

Punch Shape of circular knife in wave form.

It can be used for cutting a very white range of sheet material such as plastics, textiles, paper & paper board.

It determines basis weight profile in paper machine’s profile

Description:

A laboratory corrugating machine with digital temp. Controller for producing a sample to evaluate flat crush resistance of corrugating medium. 'A' fluting rolls are heated up to 176° C and maintained with a constant digital temperature controller. Standard model available with 'A' flute.

Sample size 0.5 inch x 6 inch

Description:

It is an equipment to test the internal fiber bond strength (z direction tensile strength ) of paper board. It shows the strength of board in relation to glue bonding at cartons side seems and possible delimitation on scoring or use of high tack coatings. This equipment is very useful for the evaluation of coated. It is used for determining the internal bond strength of Paper, Board and Laminates. Readings are consolidated on scale with Reading directly on digital display panel. Microprocessor Models are available to be connected with computer & printer for memory with past results.

Our Internal Ply Bond Tester determines the internal bonding Strength of Paper, Paperboard and Laminates by measuring the average energy in thousands of foot-pound required to delaminate the specimen in two Piles.

Salient Feature :

Made of Heavy cast iron base with built-in leveling device.

Microprocessor based reading system

Direct readings in ft, lb, joules and kg/cm.

Statistical function(last test and average value)

Manual clamping system.

Robust frame in steel design to avoid energy loss during test.

A means of registering the maximum arc enough that the pendulum swings when release

Technical Specification :

Security cover and Ball-striking head.

Measurement scale 0 to 500 ft.lb.

3 sets of washers for adjusting the adherences pressure of the sample.

Tape-support, double coated adhesive tape and manual cutting tool.

A multiple specimen preparation station allows variations of specimen thickness.

Description:

Automatic Tearing Resistance Tester -  it has pneumatic clamping of test pieces.Automatic calcutations are done through microprocessor and presentation of measured value to ensure accurate and stable test results.

It can be attached with computer & printer.

As per TAPPIT:

414, SCAN P-11, EN 21974, DN 53128.

Description:

This cutter is used for preparing the sample for edge crush test. The cutter is made up of stainless steel and it is very sharp.

Description:

Electronic GSM Balance It is used for measuring the basis weight (GSM of paper )and other similar sheet materials by weighing a small test sample with given dimensions. The GSM of the specimen is being displayed directly on Digital Panel Meter. It is suitsble for different size of paper through keyboard selection.

Digital Quadrant Scale is intended for measuring the GSM of paper and other sheet materials by weighing a small test sample with given dimensions. The GSM of the specimen is being Displayed directly on Digital Panel Meter with accuracy 0.01 GSM.

Salient Features :

Covered with Transparent Shield.

Stainless Steel tearing templates.

As per TAPPIT

410

Description:

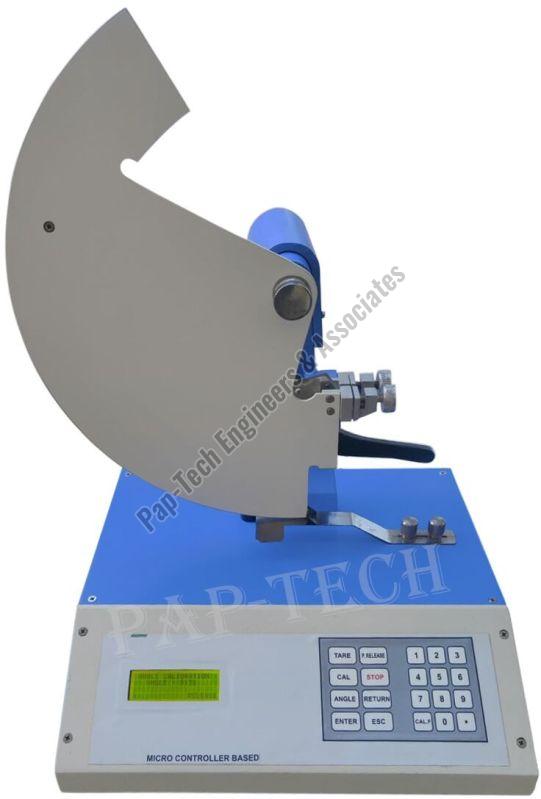

Elmendorf Type Tear Resistance Tester: It is used for measuring the resistance against tearing of paper, board, plastic films and other similar materials. An initial cut is made in a set of test piece,which are then torn through a given distance.The work done in the test piece is measured as the loss in potential energy of a pendulum which i free to swing on it horizontal axis.A calibrated scale indicates the mean tearing force.

As Per TAPPIT:

TAPPIT-414, SCAN P-11, BS 4468, DN 53128. ASTM D 689

Description:

Fully Automatic Dead Weight Thickness Micrometer is used for rapid and accurate measurement of thickness of paper, board and plastics. The thickness of sheet is measured as the distance between two circular plane surfaces under a steady pressure 1Kg/cm (98.0 Kpa). It measures thickness of paper, board & plastic films rapidly and accurately. It is a Compact model with digital display. Measuring spindle with constant lowering speed (1 mm/sec) and Single Button Operation (Motorized). Hardened and lapped measuring face. Provided with Mitutoyo (Japan) make add-on Optical. Transducer which scan a line screen. Compact Models with digital display.

Measuring spindle with constant lowering speed (1 mm/sec) and Single Button Operation (Motorized).

• Hardened and lapped measuring face.
• Provided with Mitutoyo (Japan) make add-on Optical.
• Transducer which scan a line screen. Compact Models with digital display

Description:

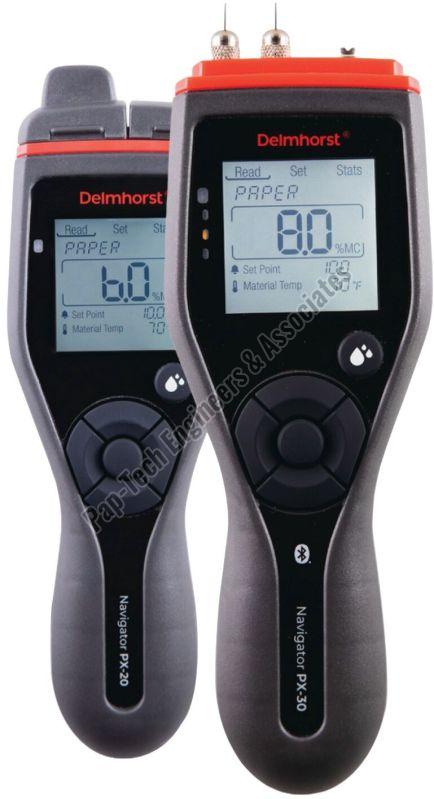

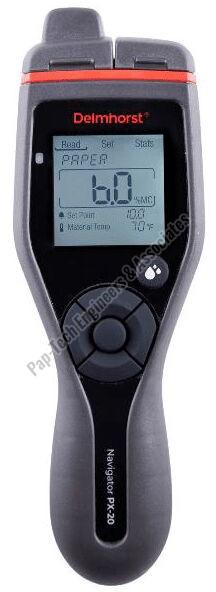

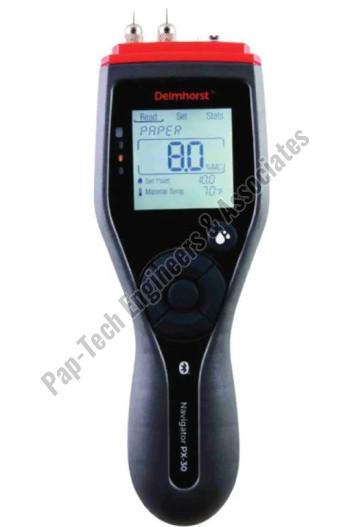

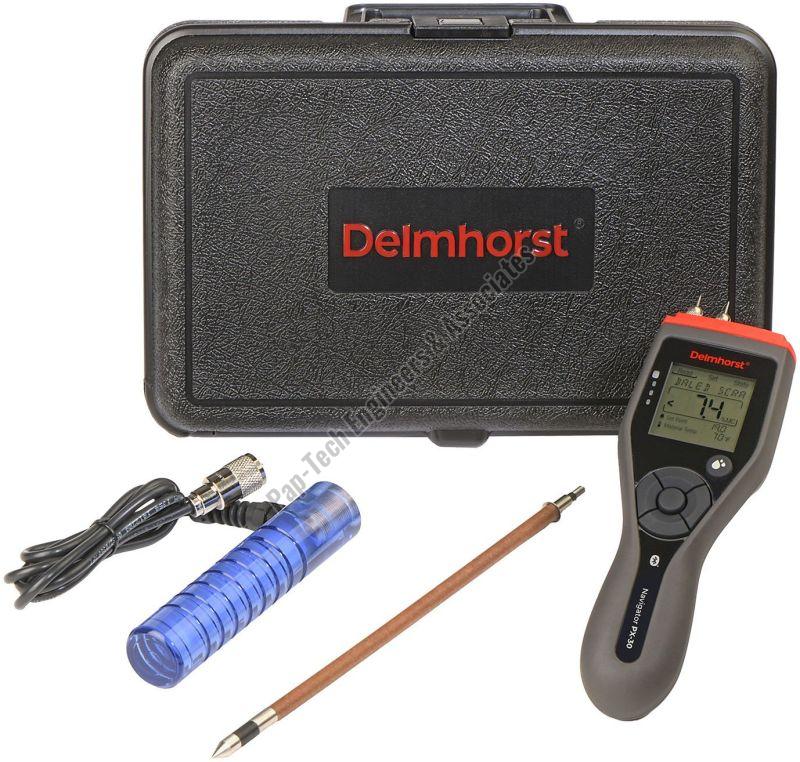

Gann Type Paper Moisture Meter is an electrical resistance type digital moisture meter. It calculates on the basis of mass of water/ mass of solids. Since the electrical conductivity of paper is considerably affected not only by its moisture content, but also by the paper temperature and various substances contained in the paper, it is necessary to take these influences into consideration in the design of the moisture meters to ensure accurate readings.

Board and Corrugated. The hands close naturally around the ergonomic form of the housing so that the pins on the end of instrument can be pressed into the material to be measured. The thin pins Paper Board and Corrugated Board

Effect of moisture on properties :

Higher GSM and lower Bursting Strength due to higher moisture. Tensile Strength decreases with increasing % RH. The strength of bonds between fibers is reduced. Tensile Stretch increases with increasing % RH. Elmendorf Tear Strength increases with increasing % RH. This is because fibers are more likely to pull out of the structure due to reduced bonding strength. More work needs to be done to complete the tear. Tensile Stiffness decreases with increasing % RH.

Salient Features:

• Handy, quick pocketed sized moisture meter for speedy single or series measurement.
• Completely automatic instrument setting.
• No separate electrodes or leads required.
• Also suitable to measure wood and normal gypsum & mixed plaster

Description:

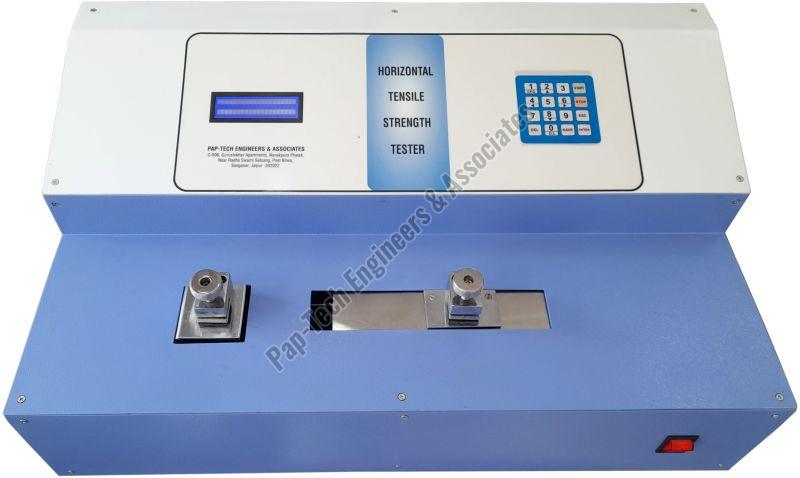

The Microprocessor Based Horizontal Tensile Strength Tester is used for determining the tensile strength and stretch of sheet materials.

Horizontal Tensile Strength Tester - User friendly software guides the operators through all steps of program selection, parameter modification and sample test to minimize to human error during test to provide rapid and efficient determination of tensile strength, stretch, tensile energy absorption (TEA) and tensile stiffness of paper and paperboard with in-built printer, fitted with imported load cell.

Technical - Specification :

Clamping Length : Selected.

Accuracy : ± 1% of reading down to 10% of the load cell capacity.

Resolutions : 0.025% of nominal load cell range and 0.1 mm in elongation measurement.

Computer Output : 1. RS 232 C & Printer port Model C 2 interface with pc having a specification a Pentium & specially developed software.

Description:

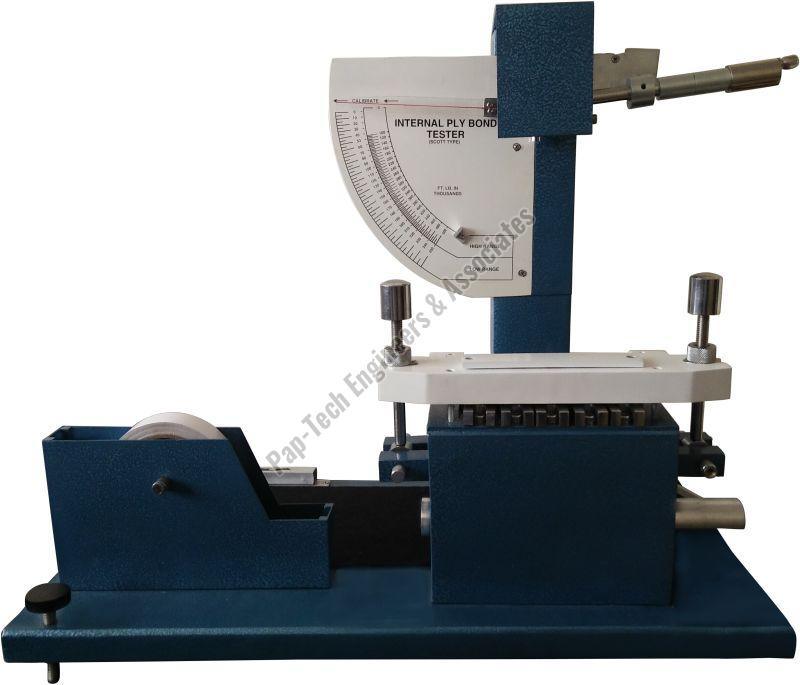

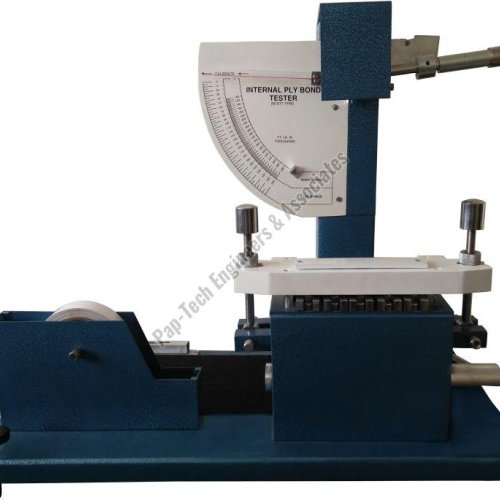

Internal Ply Bond Tester is used for determining the internal bond strength of paper,Board and Laminates with Dual capacity pendulam.

Reading are taken directly on calibrated scale.

Measuring range :  0.0- 250ft/lb,

100 to 500 ft/lb in thousand.clamping pressure 50 to 200 psi with supplied spacer ring.

Accessories : we will provide following item along with manual intenal ply bond tester with the max. range of 500 ft.lbs in thousands.

1. calibration jig attachment with different range of STD. Cal. Weight.

2. Spacer for pressing the sample

Description:

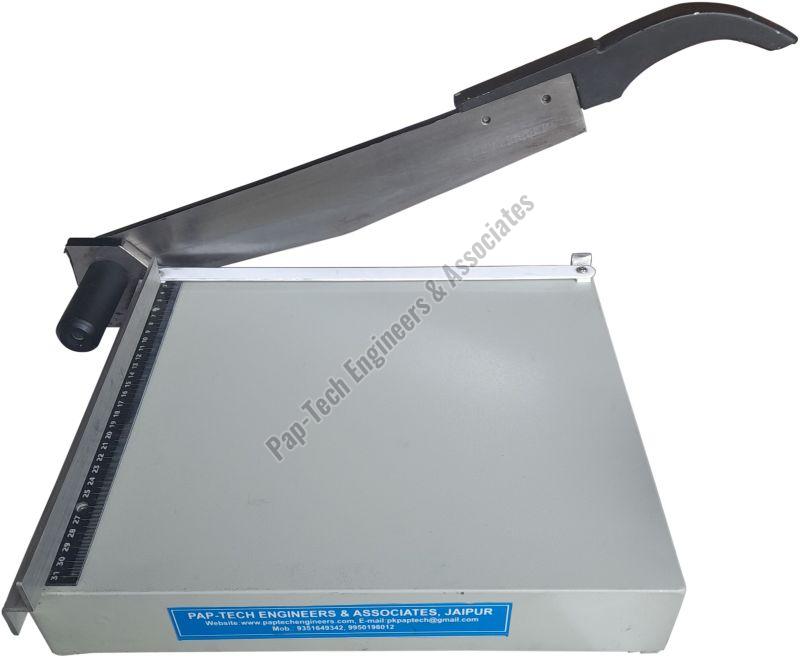

Guillotine Type A4 Sample Cutter is used for accurat and rapid prepration of test pieces and sample in laboratory.

Precision Test Strip Cutter-it is provided with automatic clamping device which by means of clamping beam holds the sheet material firmly prior to the cutting action.provision is kept for cutting the strip sample for tensile test cutting width 15mm ×300mm using fixed size spacer & holding plate.

As per TAPPIT -494,SCAN- 38

Description:

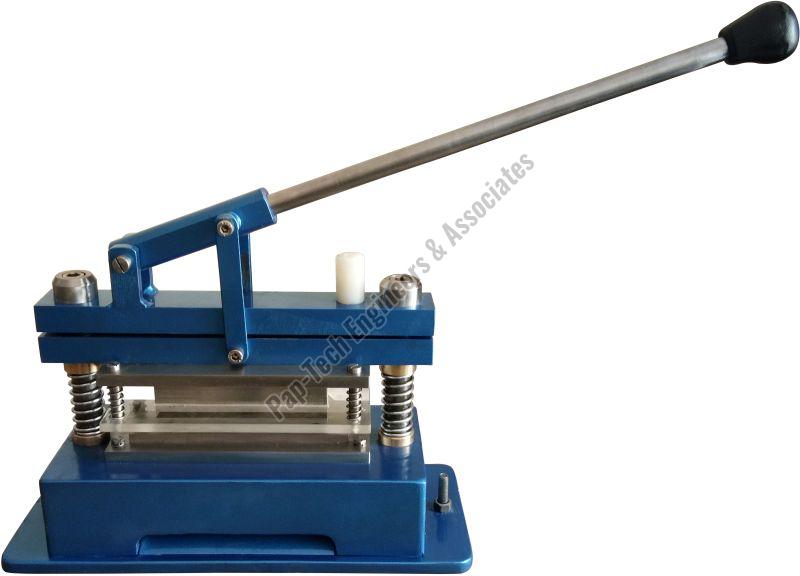

The Punch and Die Cutter for Ring Crush Test are intended for accurate and rapid preparation of Cutting of multi samples simultaneously possible. The is provideed with an automatic clamping device which by means of clamping beam which holds the sheet material firmly prior to the cutting action.

The Precision Test Strip Punch & Die Cutters are intended for accurate and rapid preparation of test pieces for use in RCT, CMT & CCT tests.

It eliminates testing errors due to sample preparation. Cutting of multi samples simultaneously possible. The cutter is provided with an automatic clamping device, which by means of clamping beam holds the sheet material firmly prior to the cutting action.

Punch & Die manufactured from tempered tool alloy steel to ensure long life. Sturdy Model & easy to operate.

As per TAPPIT:

489,SCAN P-38.

Description:

The Instrument is designed to measure the degree of water absorption of paper i.e. the capillary rise in millimeters by suspending a specimen in a vat filled with water. Height of liquid sucked up for 1 minute or 10 minutes is measured.

The cross arm of the apparatus is fitted with four testing stations of the ruler type with precise indications, facilitating easy and fast starting and also stopping. The cross arm allows the shifting and adjusting so that any desired water level can be selected.

Description:

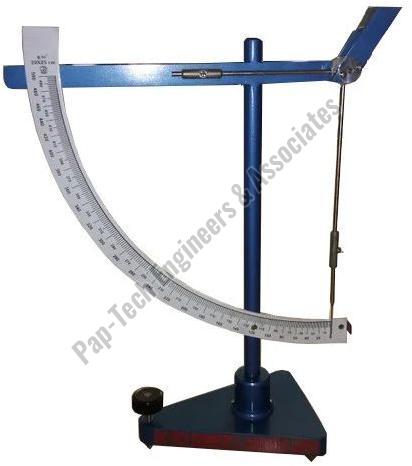

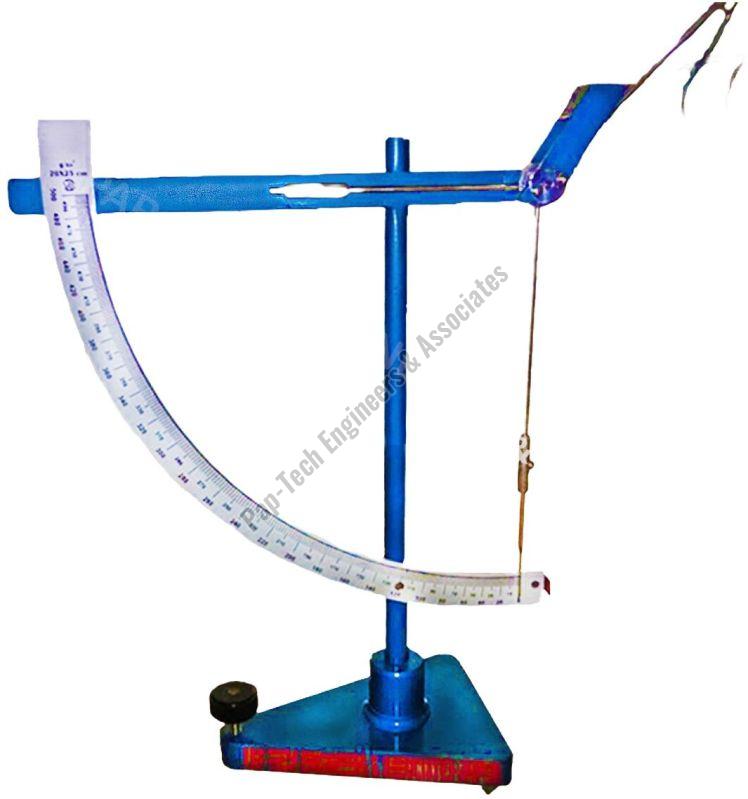

Quadrant Scale is intended for measuring the basis weight GSM of paper and other sheet materials by weighing a small test sample with given dimensions. Scales are calibrated to precision dead weights. This accuracy is maintained as long as the pendulum returns its original form and is kept free from corrosion, distortion, or other causes, which may affect its weight and balance.

GSM is known as Grammage per square meter, which is an important factor in Paper and Packaging industry for measurement. GSM Scale is used to measure the GSM of paper through the weight of paper. Body of GSM Scale is made up of stainless steel. There is a pendulum attached in GSM Scale which is used to calculate the GSM of paper when hanger moves along with it. The accuracy of weighing paper should be proper and the accuracy depends upon the movement of pendulum. This accuracy is maintained as long as pendulum achieved its final position. GSM Scale has tabular pendulum. The gravity provides good stability and reliability to GSM scale. In single graduate scale, scale selects only one template.

Calibration of GSM Scale should be done by precision dead weight. Generally we used 0-250GSM Scale. So we take 20 x 25mm template to measure the GSM of paper. GSM Scale is calibrated to measure the GSM of 20 x 25mm sized templates.Sample of paper taken from the templates placed in the hanger of GSM Scale and then we released the hanger along with pendulum. When pendulum stops moving and become constant then this is the GSM of paper. 0-500 GSM Scale is not used generally but it can use for measuring the GSM of Kraft paper, whose thickness is more than average writing printing paper. The whole process of GSM Scale is done manually.Accuracy of GSM Scale should keep free from corrosion, distortion and other reasons which affect the accuracy of weight.

This instrument is used for measuring the basis weight (GSM of paper) and other sheet materials by weighing a small test sample with given dimensions. Scales are calibrated to precision dead weights. This accuracy is maintained as long as the pendulum returns to its original form and is kept free from corrosion, distortion or other causes which may affect its weight and balance.

Salient Features:

Sturdy pendulum design combined with low center of gravity gives these scales outstanding stability and reliability.

Instrument is having rigid tubular pendulum with hardened bearing for needle.

Basket of Steel Wire cast tripod base with chromium plated leveling screw.

Stainless Steel tearing templates.

Quadrant scale in double graduations shows direct weight in GSM.

Note:

Machine is useful for paper, packaging corrugarion, flexible textile, leather and rubber industry.

Description:

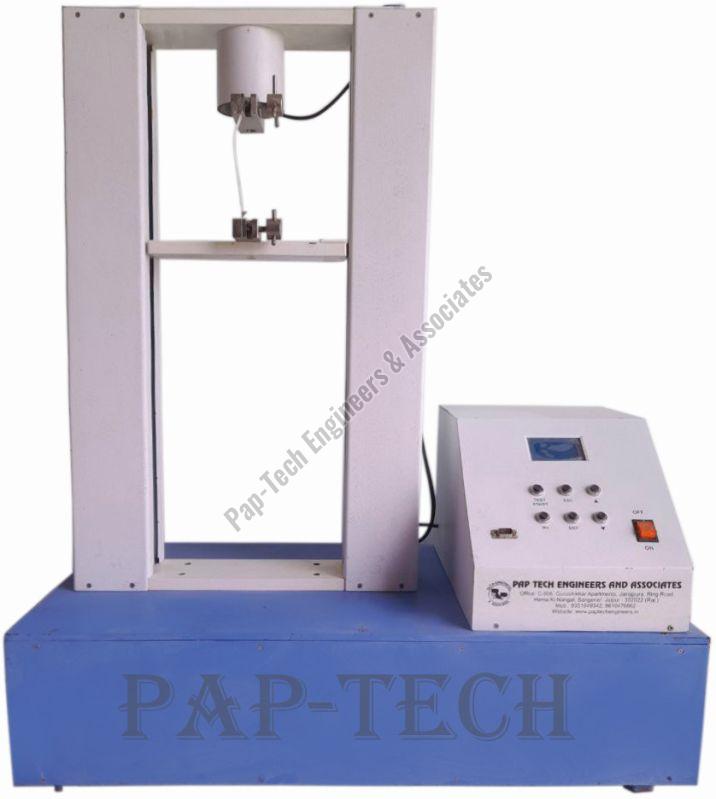

Vertical Tensile Strength Tester With Digital display of Tensile Strength & Stretch of Paper, Paperboard and similar materials complete with memory for retaining peak value, automatic or normal zero setting, overload and over travel protection facilities. With imported load cell & imported DC motor.

The Microprocessor Based Tensile Strength Tester is used for determining the tensile strength and stretch of sheet materials.

Technical - Specification :

Measuring Result : Individual results of Tensile Strength, Stretch, TEA, Tensile Stiffness, Breaking Length, Breaking time mean value & Standard Deviation.

Clamping Length : Selected.

Accuracy :  1% of reading down to 10% of the load cell capacity.

Resolutions : 0.025% of nominal load cell range and 0.1 mm in elongation measurement.

Computer Output : 1. RS 232 C & Printer port Model C 2 interface with pc having a specification a Pentium & specially developed software.

Application Standards:

SCAN P-38 ISO 1924/4, TAPPI 494, , APPITA/ AS 1301.448, BS 4415, CPPA D 34, DIN 533112, TEILL 1

Description:

These cutters are speedy and accurate cutting of circular and squre samples  without any deformation and damage. It is suitable for cutting a very wide range of sheet material such as plastics , textiles, paper and paperboard.

The Precision Test Strip Punch & Die Cutters are intended for accurate and rapid preparation of test pieces for use in Tensile Strength tests.

It eliminates testing errors due to sample preparation. Cutting of multi samples simultaneously possible.

The cutter is provided with an automatic clamping device, which by means of clamping beam, holds the sheet material firmly prior to the cutting action.

Punch & Die manufactured from tempered tool alloy steel to ensure long life. Sturdy Model, easy to operate

As per TAPPIT:

489, Scan P-38.

Strip Punch:

For preparation of test pieces towrds use in Tensiles Strength test.

Punch & Die manufactured from tempered tool alloy steel to ensure long life. Sturdy Model, easy to operate.

Description:

Punch & Die manufactured from tempered tool alloy steel to ensure long life. Sturdy Model & easy to operate.

It eliminates testing errors due to sample preparation. Cutting of multi samples simultaneously possible. The cutter is provided with an automatic clamping device, which by means of pneumatic cylinder & valve holds the sheet material firmly prior to the cutting action.

Description:

It is used for cutting paper & paperboard samples. The Punch and Die Cutter for A4 Sheet has a sheet metal base and incorporates a guide for the material to be cut. Both top and bottom cutting blades are made from special knife steel and can be resharpened.

It eliminates testing errors due to sample preparation. Cutting of multi samples simultaneously possible. The cutter is provided with an automatic clamping device, which by means of clamping beam holds the sheet material firmly prior to the cutting action.

Punch & Die manufactured from tempered tool alloy steel to ensure long life. Sturdy Model & easy to operate.

It is intended for accurate and rapid preparation of test pieces for A4 paper test. Punch & Die manufactured from tempered tool alloy steel to ensure long life. Sturdy Model & easy to operate.

Test Piece Sizes: 21 cm x 29.7 cm

As per TAPPIT:

489, Scan P-38.

Sheet Punch:

It is a manually operated compact cutting machine

Description:

The Punch and Die Cutter for Ring Crush Test are intended for accurate and rapid preparation of Cutting of multi samples simultaneously possible. The is provideed with an automatic clamping device which by means of clamping beam which holds the sheet material firmly prior to the cutting action.

The Precision Test Strip Punch & Die Cutters are intended for accurate and rapid preparation of test pieces for use in RCT, CMT & CCT tests.

It eliminates testing errors due to sample preparation. Cutting of multi samples simultaneously possible. The cutter is provided with an automatic clamping device, which by means of clamping beam holds the sheet material firmly prior to the cutting action.

Punch & Die manufactured from tempered tool alloy steel to ensure long life. Sturdy Model & easy to operate.

As per TAPPIT:

489,SCAN P-38.
