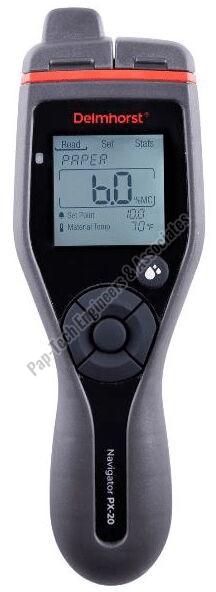

PX-20 MOISTURE METER

The PX-20 is the latest in the new NavigatorTM family of moisture meters from Delmhorst. Uniquely designed for use in the field, the PX-20 feature a dashboard-like display that is easy to read under most conditions, and large, easy to use navigation buttons.

With the PX-20 Digital Paper Meter, the contact pins mounted on the top of the meter are used for making direct contact with the material. Various external electrodes are also available for specific applications. The PX-20 is especially useful for testing paperboard, corrugated stock, and paper cores and tubes. They are ideal for QC personnel, buyers and salespeople.

PRODUCT FEATURES:

·Large, custom display with auto backlight – easy to read under all conditions.

·Modern case design with large, tactile buttons and E-Z grip handle.

·On-screen statistics for up to 100 readings saved to the meter - High, Low, Average, Standard Deviation.
·Moisture Range: 4.3%-18% MC for paper (kraft paper calibration)

·0 - 100 reference scale for obtaining relative moisture levels on other materials without calibration.

·Alarm set point - alerts to user-selected MC level. Internal calibration check.

·“Low Batt” warning with audio.
·Auto off timer. Set to 1m, 4m or 10m.

METER SPECIFICATIONS:

·Power: 2x AA Alkaline battery Op Temp: 0-255° F (-18-124°C).

·Size: meter only - 8.65in x 2.85in x 1.60in (21.97cm x7.24cm x 4.06cm).

·Weight: meter only - 8.6oz (244gm).

·Hard plastic carrying case included 1-year warranty on manufacture.
