Paper Moisture Meter

The PX-30 Digital Paper Meter is a state-of-the-art moisture meter designed for precision, durability, and ease of use in the field. As part of Delmhorst's Navigator™ family, the PX-30 is tailored for professionals in quality control, procurement, and sales. Its advanced features and robust design make it a reliable tool for testing moisture content in paper-based materials.

Key Features:

1. Dashboard-Like Display:

   • Easy-to-read interface, suitable for various lighting conditions.
   • Clear and intuitive navigation for seamless operation.

2. Direct Contact Pins:

   • Built-in contact pins on the top of the meter for direct moisture measurement.
   • External Electrodes: Optional electrodes available for specific applications.

3. Material Compatibility:

   • Ideal for testing paperboard, corrugated stock, and paper cores and tubes.

4. Bluetooth® Connectivity:

   • Seamless connection to the Delmhorst EDGE™ app.
   • Customizable settings for tailored measurements.
   • Easy sharing of data from remote locations.

5. Field-Optimized Design:

• Rugged construction to withstand industrial environments.
• Large, ergonomic navigation buttons for easy handling.

Product Features:

1. User-Friendly Design:

   • Large, custom display with auto backlight, ensuring readability under all conditions.
   • Modern casing with large tactile buttons and an E-Z grip handle for ergonomic handling.

2. Moisture Measurement Range:

   • Paper (kraft calibration): 4.3% - 18% MC.
   • Baled Scrap Paper: 5% - 40% MC.
   • Relative Scale (0-100): For non-calibrated materials.

3. On-Screen Statistics:

   • Tracks up to 100 readings, displaying High, Low, Average, and Standard Deviation.

4. Temperature Correction:

   • Supports °F/°C adjustment for baled and scrap paper measurements.

5. Color-Coded LED Alerts:

   • Adjustable via the EDGE™ app, providing quick visual feedback.

6. Alarm Setpoint:

   • Notifies users when moisture content exceeds preselected levels.

7. Internal Calibration Check:

   • Ensures the device remains accurate over time.

8. Power and Battery:

   • Operates on 2x AAA alkaline batteries with a Low Battery warning and audio alerts.
   • Auto-off timer settings (1 min, 4 min, 10 min) conserve battery life.

9. Compatibility:

• Works with existing Delmhorst electrodes and prods, with additional options available for specialized applications.

Meter Specifications:

• Operating Temperature: 0°F - 255°F (-18°C - 124°C).
• Dimensions: 8.65 in x 2.85 in x 1.60 in (21.97 cm x 7.24 cm x 4.06 cm).
• Weight: 8.6 oz (244 g).

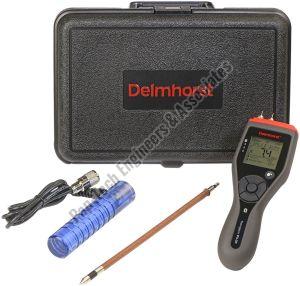

• Carrying Case: Included hard plastic case for protection.
• Warranty: 1-year warranty covering manufacturer defects.

Delmhorst EDGE™ App Features:

1. Data Export: Save readings in .csv format for detailed analysis.
2. Unlimited Readings: Log and store unlimited data.
3. Customizable LED Ranges: Tailor ranges to specific moisture thresholds.
4. Timestamp and Geotagging: Automatically records location and time for each reading.

Ideal Applications:

• Paper Testing: Measure moisture in kraft paper and other materials.
• Recycling Industry: Assess moisture content in baled and scrap paper.
• Packaging Quality Control: Optimize moisture levels in corrugated stock and cores.

The PX-30 is a powerful and flexible tool for professionals who demand precision, ease of use, and advanced data management.
