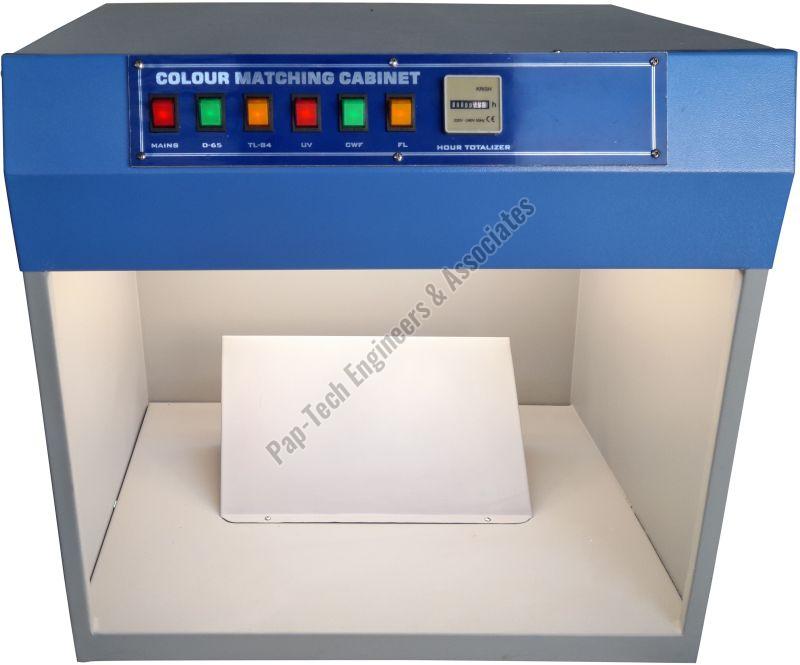

Color Matching Cabinet

The Color Matching Cabinet is designed for accurate visual assessment of color under standardized lighting conditions, ensuring consistent and reliable results for color-critical applications.

Key Features:

• Robust Construction: Cabinet made from powder-coated M.S. (Mild Steel) sheet for durability.
• Interior Finish: Munsell neutral grey for enhanced color accuracy.
• Lighting Control: All tube lights are operated independently using electronic ballasts.
• Separate Electrical Tray: The electrical circuit is mounted on a separate tray for ease of maintenance and improved safety.
• Imported Hour Meter: Tracks the operational time of tube lights for efficient monitoring.
• Ergonomic Viewing Plate: Supplied with a 45° angle plate for convenient sample viewing.
• Premium Tube Lights: Equipped with imported Philips Holland/Thailand tube lights (2 ft./18 W).
• User-Friendly Design: Easy to operate and maintain.

Technical Specifications:

• Dimensions: 680 mm (Width) x 640 mm (Height) x 520 mm (Depth)
• Viewing Plate Angle: 45°
• Model: Standard with 5 types of light sources:
  • D65 (Daylight): 2 Nos.
  • TL84 (Point-of-Sale): 2 Nos.
  • Ultra Violet: 1 No.
  • Tungsten Filament Light: 4 Nos. (60 W Light)
  • Cool White Light: 1 No.
