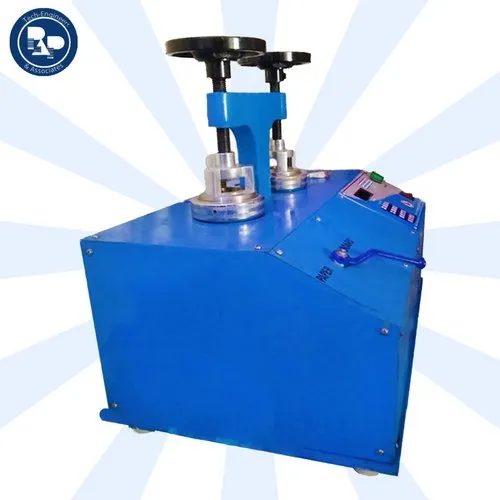

Digital Bursting Strength Tester with Printer

95,000.00 / Piece

1 Piece (MOQ)

Piece

Edit

Business Type	Manufacturer, Exporter, Supplier
Weight	140 Kgs
Brand	Pap-Tech
Power Supply	0.5 kw Single phase 220 Volts.
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Range

0-7 kg/cm2 & 0-35 kg/cm2

Least Count

0.1 kg/cm2

Dimensions mm

830 (L) x 630 (W) x 710 (H)

Compressed Air For Automatic Clamping Of Sample

5 kg / cm2

Model No

PAP-2056 D-2

Origin

India

Brochure

View

Description:

This instrument has Dual Range of Clamping and diaphragm. It is provided with Microprocessor Control and it can be attached with computer & printer. It is used for both paper & board and is known as Microprocessor Double Head Model Attached with Printer.

Featuers:

Manual Clamping
Two Diaphragm Seats.
Selector switch to select either paper testing or board testing.
One to accommodate thin rubber diaphragm for testing materials of low strength value like paper, etc. and the other to accommodate moulded rubber diaphragm for testing materials of high strength value like corrugated board, etc.
Single push button operation.
Provision for adjustment of pre-determined clamping pressure to eliminate variations in clamping pressure when done manually.
High precision digital read-out with least count of 0.1 kg/cm².
Incorporates Microprocessor based control panel with printer port facility. You can attach computer & printeralso.
